AwMini Portable Water Activity Meter
Compact, Affordable and Reliable Water Activity Measurement Solution AwMini is a portable water activity meter designed for fast quality control testing in food production, laboratories and field inspection applications. And new AMOLED.
MODEL:AwMini
Product Overview
The AwMini Portable Water Activity Meter is a compact, high-precision instrument designed for rapid and reliable measurement of water activity (Aw) in food, pharmaceutical, biological, and industrial samples.
Utilizing an advanced professional-grade sensor, the AwMini delivers laboratory-level accuracy in a lightweight handheld design. With fast measurement capability, wireless connectivity, cloud data management, and multilingual support, it is ideal for both laboratory analysis and on-site quality control applications.
Typical Applications
Food Industry
- Food production quality control
- Shelf-life studies
- Food safety testing
- Product development and research laboratories
Pharmaceutical & Biotechnology
- Pharmaceutical manufacturing quality assurance
- Drug development laboratories
- Biological sample analysis
- Biotechnology research facilities
Research & Testing Laboratories
- Inspection and quarantine agencies
- Universities and research institutes
- Third-party testing laboratories
- Scientific research organizations
Other Industries
- Chemical products
- Tobacco products
- Paper manufacturing
- Material science
Key Features
Fast and Accurate Measurement
- Advanced professional water activity sensor
- Accuracy up to ±0.02 Aw
- Measurement range from 0.000 to 1.000 Aw
- Long-term stability better than 0.0025 Aw/year
Dual Measurement Modes
Standard Measurement Mode
- Complies with GB 5009.238-2016 testing procedures
- Suitable for laboratory-grade measurements
Fast Measurement Mode
- Results available in as little as 3 minutes
- Typical measurement time approximately 5 minutes
- Significantly improves testing efficiency while maintaining accuracy

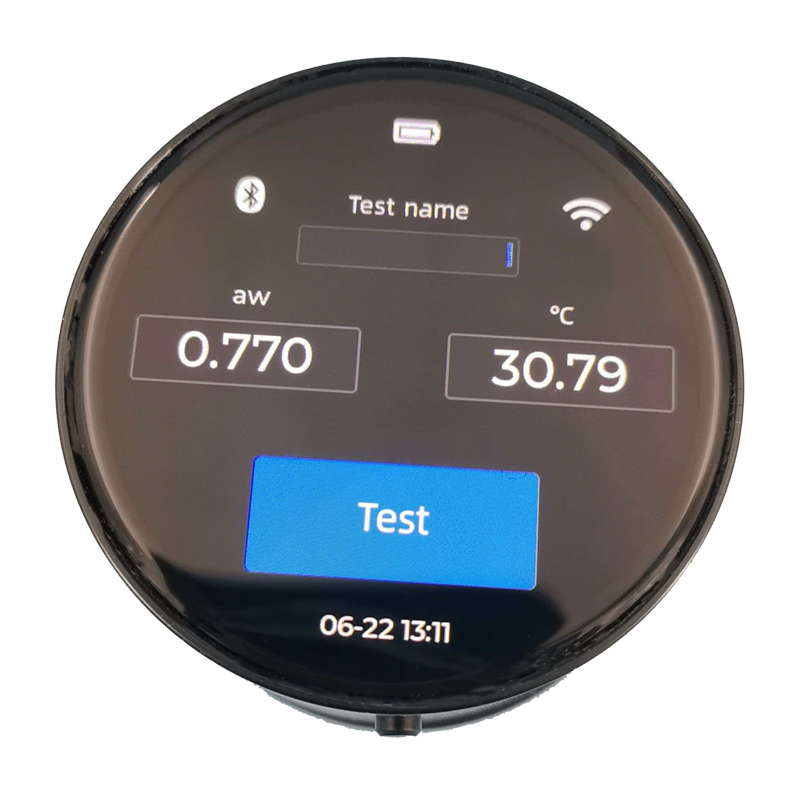

High-Definition Touchscreen Display
- 1.75-inch circular AMOLED color touchscreen
- Excellent visibility under bright sunlight
- Smooth and intuitive operation
- Real-time display of water activity and temperature
Flexible Calibration Options
Supports:
- One-point calibration
- Two-point calibration
Advanced Data Management
- Storage capacity for up to 1000 measurement records
- TF card data export
- Bluetooth connectivity
- Wi-Fi communication
- Cloud data upload
- Remote OTA firmware upgrades
- Mobile App control and data viewing and management
Portable Design
- Compact and lightweight construction
- Rugged carrying case included
- Suitable for laboratory and field measurements
- Rechargeable lithium battery and USB power supply
Multi-Language Interface
Supports 12 languages, including:
- English
- Chinese
- French
- Spanish
- Additional international languages
Advantages
✔ High-precision professional sensor
✔ Fast measurements in as little as 3 minutes
✔ 1.75-inch AMOLED touchscreen display
✔ Bluetooth and Wi-Fi connectivity
✔ Cloud-based data management
✔ Remote OTA firmware upgrades
✔ TF card data export
✔ Storage for 1000 measurement records
✔ Multi-language operation
✔ CE, CCC, and RoHS certified
✔ Portable field-ready design
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Type | Water Activity (Aw) |
| Measurement Range | 0.000 – 1.000 Aw |
| Resolution | 0.001 Aw |
| Accuracy | ±0.02 Aw (10–30°C) |
| Temperature Accuracy | ±0.2°C |
| Operating Conditions | -10 to 40°C |
| Sample Temperature Range | -10 to 50°C |
| Long-Term Stability | <0.0025 Aw/year |
| Calibration | 1, 2, 3, or 4-point calibration |
| Display | 1.75-inch Circular AMOLED Touchscreen |
| Data Storage | 1000 Records |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| TF Card Support | Yes |
| Fast Measurement Mode | Yes (3 min minimum, typically 5 min) |
| Standard Measurement Mode | Yes |
| Power Supply | USB Type-C / Rechargeable Lithium Battery |
| Housing Material | Aluminum Alloy + POM + 304 Stainless Steel |
| Dimensions | Ø51 × 51 mm |
| Weight | Approx. 208 g |
| Recommended Maintenance | Annual calibration recommended |
| Certifications | CE, CCC, RoHS |
Ordering Information
| Item No. | Model | Standard Configuration |
|---|---|---|

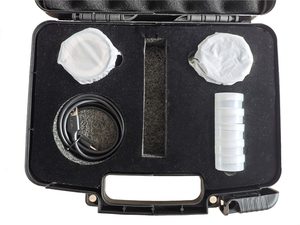

| 1100 | AwMini | AwMini Meter, 3 Sample Cups, USB Cable, User Manual, Mobile App, Portable Carrying Case |
Why Choose AwMini Portable Water Activity Meter?
AwMini is designed for professionals who need accurate water activity measurements without the size, complexity, and cost of traditional laboratory instruments.
Featuring a compact handheld design weighing only 208 g, AwMini easily fits into a toolbox, carrying case, or laboratory workspace. Despite its small size, it delivers professional-grade performance with fast measurement times, advanced wireless connectivity, and reliable long-term stability.
By combining portability, precision, and affordability, AwMini offers an outstanding value proposition for manufacturers, laboratories, researchers, and quality control professionals worldwide.
AwMini vs AwTester
| Feature | AwMini | AwTester |
|---|---|---|
| Design | Compact Portable | Professional Portable |
| Target User | Small businesses & routine testing | Industrial QC & laboratories |
| Price Level | Entry Level | Professional Level |
| Operation | Simple | Advanced |
| Data Function | Basic | Enhanced |
| Auto Shutdown | YES | NO (For continuous measurement) |
| Rechargeable Lithium Battery | YES | NO (AA×4) |
